L-1LFT-360

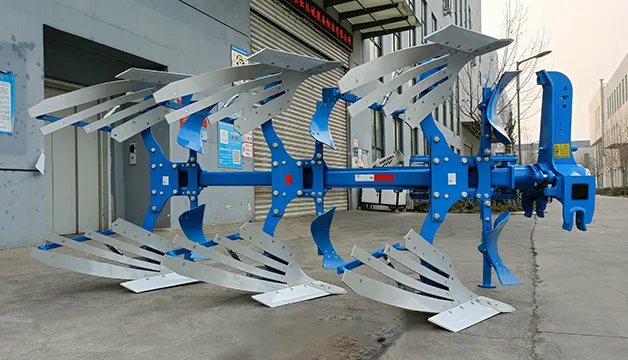

L series is light amplitude modulation plough
The machine adopts non - welded girder structure.It has a double screw connection structure and cast rollover parts.
The tire is specially designed for turning plow and has two functions of walking and depth limiting
A variety of supporting forms can be selected,Suitable for most terrain.
It is the mainstream model in the market.

Product highlights

L series is light amplitude modulation plough
The machine adopts non - welded girder structure.It has a double screw connection structure and cast rollover parts.
The tire is specially designed for turning plow and has two functions of walking and depth limiting
A variety of supporting forms can be selected,Suitable for most terrain.
It is the mainstream model in the market.

Product parameter

Model

Unit

J-1LYFT-360

Length

mm

4000

Width

mm

2200

Height

mm

1950

Ploughing Width(工作耕幅)

cm

120/138/159/180

Interval between Two Bodies(犁体间距)

cm

120

Single Ploughing Width(单体耕幅)

cm

40/46/53/60

Adjustable tillage depth

cm

20-40cm

Weight

kg

1300

Auxiliary power

H/P

140-18Horse power

Beam structure

/

Single screw rod and single beam

Plow body configuration

/

Optional large grating/mirror surface

Executive standards

/

GB/T14225-2008
